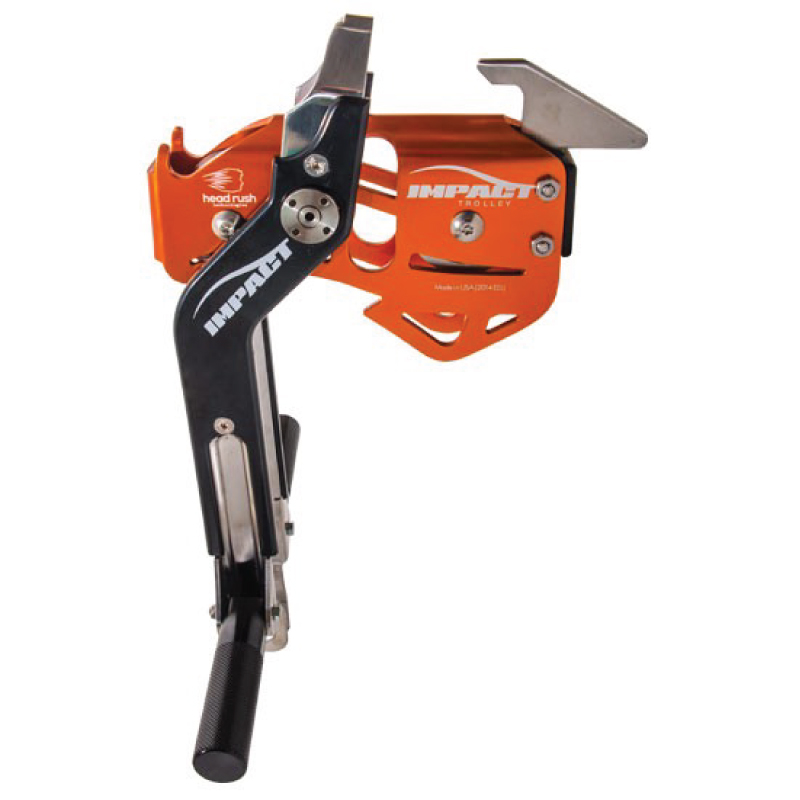

    Impact Trolley Orange

    Trolley Specifications

    Model IT-100 (the standard Impact Trolley)

    Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)
    Net Weight: 1.2 lbs (544 grams)
    Working Temperatures: Minimum: -40°C/-40° F
    Maximum: 80°C/176°F

    Maximum Operating Speed: 75 mph (120 kph)
    Materials: Housing: Anodized Aluminium Sheaves: Stainless Steel
    Impact Surface: ABS Plastic

    Rated Working Capacity: 33-330 lbs (15-150 kg)
    Maximum Load Rating: 17 kN (3,822 lbf)
    Min/Max Cable diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)
    Hook Accessory Specifications

    Model LU-100

    Dimensions: 71 x 81 x 6 mm (2.8 x 3.2 x 0.24 in)
    Net Weight: 0.2 lbs (3.2 oz)
    Working Temperature (Minimum): -40˚C/-40˚F
    Working Temperature (Maximum) 80˚C/176˚F
    Materials: Stainless Steel
    T-Handle Specifications

    Model THS-100

    Pivoting Swing Arm Dimensions (folded): 360 x 30 x 50 mm (14.2 x 1.2 x 2.0 in)
    Net Weight: 1.1 kg (2.4 lbs)
    Working Temperature (Minimum): -40˚C/-40˚F
    Working Temperature (Maximum) 80˚C/176˚F
    Materials: Stainless Steel
    Rated Working Capacity: 15–150 kg (30–330 lbs)
    Maximum designed impact velocity: 80 kph (50 mph); max impact force is 3.5 kN (786 lbf)

    Description

    The Impact Trolley is the only trolley on the market engineered specifically for smooth and consistent impact braking with the zipSTOP Zip Line Brake.

    The Impact Trolley is the only trolley on the market designed specifically for impact braking in the recreational zip line and ropes course industry. Engineered specifically for the zipSTOP Zip Line Brake, the Impact Trolley provides smoother braking, enhanced rider experience, reduced cable wear, and decreased rider risk. Maximum operating speed is 75 mph (120 kph) and the suitable rider weight range is 33–330 lbs (15–150 kg).

    The Impact Trolley can be mounted in various configurations including single or dual cable setups with primary and secondary clip-in options, and with or without the T-Handle Accessory or Hook/Catch accessory mechanism.
