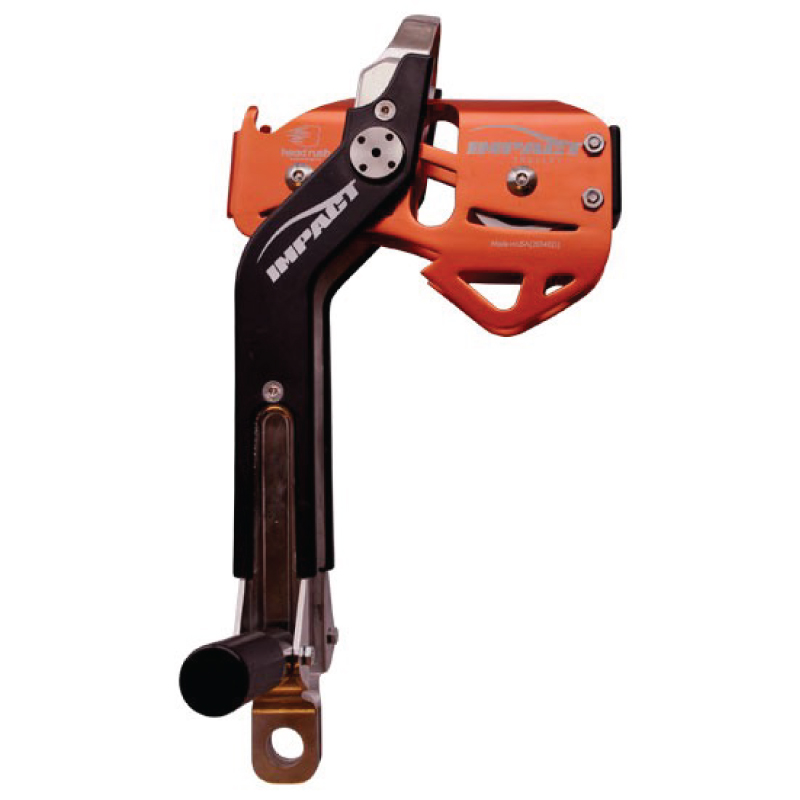

Impact Trolley (Orange) – With T-Handle

55,555.00

Trolley Specifications

Model ITT-100 (Impact Trolley with T-Handle)

Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)
Net Weight: 1.2 lbs (544 grams)
Working Temperatures: Minimum: -40°C/-40° F
Maximum: 80°C/176°F

Maximum Operating Speed: 75 mph (120 kph)
Materials: Housing: Anodized Aluminium Sheaves: Stainless Steel
Impact Surface: ABS Plastic

Rated Working Capacity: 33-330 lbs (15-150 kg)
Maximum Load Rating: 17 kN (3,822 lbf)
Min/Max Cable diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)

T-Handle Specifications

Model THS-100

Pivoting Swing Arm Dimensions (folded): 360 x 30 x 50 mm (14.2 x 1.2 x 2.0 in)
Net Weight: 1.1 kg (2.4 lbs)
Working Temperature (Minimum): -40˚C/-40˚F
Working Temperature (Maximum) 80˚C/176˚F
Materials: Stainless Steel
Rated Working Capacity: 15–150 kg (30–330 lbs)
Maximum designed impact velocity: 80 kph (50 mph); max impact force is 3.5 kN (786 lbf)

Description

Our most popular trolley setup, with the best possible rider experience. The handle keeps riders facing forward with their hands free from the impact area (essential with impact braking) and pivots to smoothen the impact, swinging with the rider as they decelerate.

Features

  • Only trolley designed for impact braking
  • Rated for higher speeds – up to 70 mph (112.65 km/h)
  • Sheaves designed to fit cables between 3/8in and 3/4in 9.5 ≤ Dia ≤ 19 mm
  • Simple, single-step mounting maximizes throughput
  • Increased performance with comparable cost to other trolleys
  • Anodized aluminum increases strength while being corrosion resistant
  • Cost savings potential through less frequent cable, trolley and brake part replacements
  • Longer lifespan
  • Lightweight design
  • Multiple clip-in points for enhanced safety
