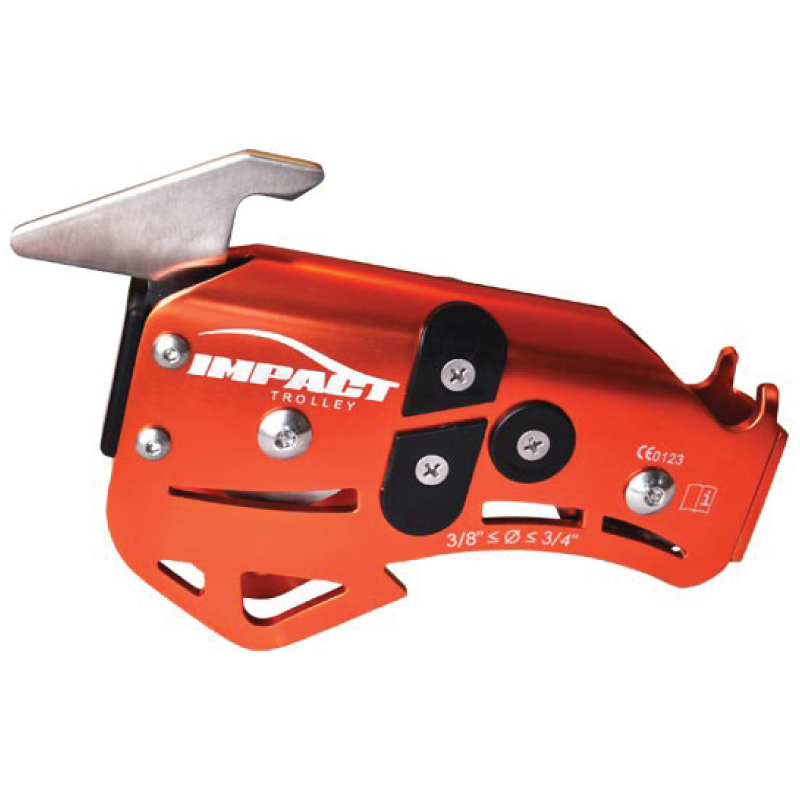

Impact Trolley (Orange) – With Hook Accessory


Trolley Specifications

Model ITL-100 (the standard Impact Trolley with hook accessory)

Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)
Net Weight: 1.2 lbs (544 grams)
Working Temperatures: Minimum: -40°C/-40° F
Maximum: 80°C/176°F

Maximum Operating Speed: 75 mph (120 kph)
Materials: Housing: Anodized Aluminium Sheaves: Stainless Steel
Impact Surface: ABS Plastic

Rated Working Capacity: 33-330 lbs (15-150 kg)
Maximum Load Rating: 17 kN (3,822 lbf)
Min/Max Cable diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)
Hook Accessory Specifications

Model LU-100

Dimensions: 71 x 81 x 6 mm (2.8 x 3.2 x 0.24 in)
Net Weight: 0.2 lbs (3.2 oz)
Working Temperature (Minimum): -40˚C/-40˚F
Working Temperature (Maximum) 80˚C/176˚F
Materials: Stainless Steel


The hook accessory interacts with a catch mechanism on the brake trolley to prevent riders from rolling away from the landing zone, increasing throughput by allowing a guide to easily pull the rider to the platform. It even works with offset redirection lines.


  • Only trolley designed for impact braking
  • Rated for higher speeds – up to 70 mph (112.65 km/h)
  • Simple, single-step mounting maximizes throughput
  • Increased performance with comparable cost to other trolleys
  • Anodized aluminum increases strength while being corrosion resistant
  • Cost savings potential through less frequent cable, trolley and brake part replacements
  • Longer lifespan
  • Lightweight design
  • Multiple clip-in points for enhanced safety
