ZIPSTOP

446,156.00

Rated Working Capacity: 15 to 150 kg (33 to 330 lbs)
Device Weight: 23.5 kg (52 lbs)
Webbing Length:12.5 meters (41 ft)
Mounting Configurations:1:1, 2:1 and Pivot Mount
Model Number: ZS125-08
Warranty: 2 years
Rated Working Velocity:

  • 6 to 36 kph (4 to 22 mph) utilizing a direct 1:1 load
  • 10 to 60 kph (6 to 37 mph) utilizing a 2:1 reduction line*

*Higher rated working velocities require that the zipSTOP device be utilized in conjunction with a reduction line assembly. The specifications noted are valid only when installed as part of that system.

Line Specifications:

Type: Nylon/Spectra Webbing
Width: 19 mm (3/4 in)
Thickness: 2.5 mm (.1 in)
Breaking load (new): 15.6 kN (3507 lbf)

Description

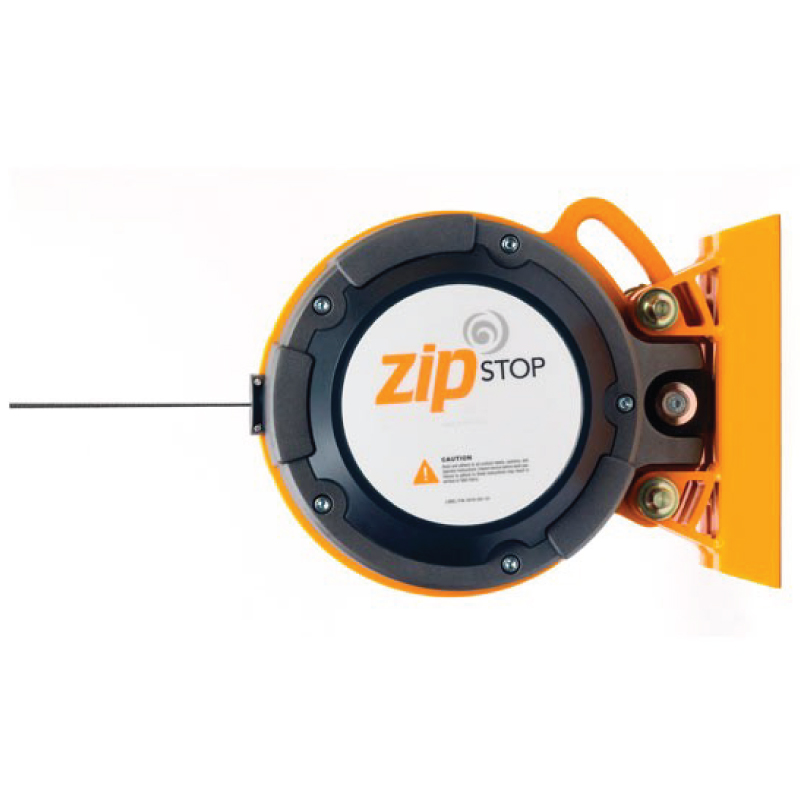

The best brake for your zip line, zipSTOP Zip Line Brake uses self-regulating eddy current magnetic braking technology to brake zip line riders smoothly, comfortably, and consistently.

The assembly includes:

  • zipSTOP Zip Line Brake device
  • Brake trolley
  • Mounting bracket

Key zipSTOP Benefits:

  • Eddy current braking technology adjusts automatically to ensure a smooth rider deceleration.
  • Allows for a wide variety of rider weights and speeds.
  • Automatically resets after each rider, minimizing human error.
  • Helps mitigate risk by removing human error from the rider or guides.
  • Low cost of ownership, including an annual recertification at $399 and replacement of sacrificial wear parts.
  • Able to withstand outdoor environments and work consistently in any conditions.
