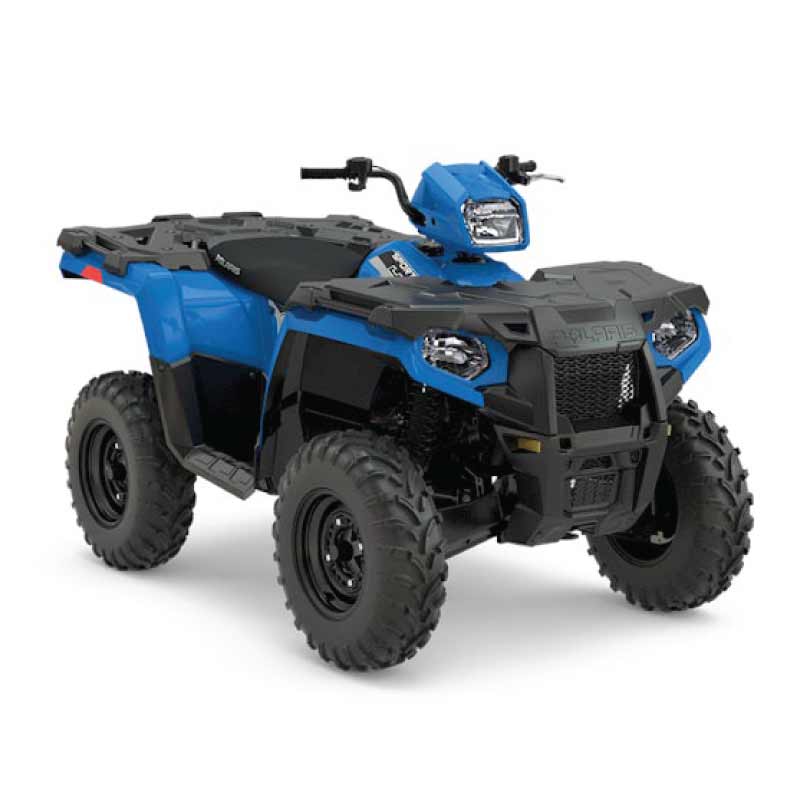

SPORTSMAN® 450 HO

0.00

Description

Engine & Drivetrain

Engine Type ProStar 500cc, 4-Stroke SOHC Single Cylinder
Cylinders-Displacement (cc) 33 HP
Fuel System Electronic Fuel Injection
Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
Drive System Type True On-Demand AWD/2WD
Cooling Liquid

Suspension:

Front Suspension MacPherson Strut With 8.2 in (20.8 cm) Travel
Rear Suspension Dual A-Arm, IRS 9.5 in (24.1 cm) Travel

Brakes:

Front/Rear Brakes Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake Park in Transmission/Lockable Hand Lever

Tires / Wheels:

Front Tires 24X8-12, NS388
Rear Tires 24X10-12, NS388
Wheels Stamped Steel

Dimensions:

Bed Box Dimensions (L x W x H) N/A
Front/Rear Rack or Box Capacity 90 lb (40.8 kg)/180 lb (81.6 kg)
Fuel Capacity 4.5 gal (17.0 L)
Ground Clearance 10.5 in (26.7 cm)
Overall Vehicle Size (L x W x H) 83 x 48 x 47 in (210.8 x 121.9 x 119.4 cm)
Wheelbase 50.5 in (128.3 cm)
Estimated Dry Weight (pounds/kg) 701 lb (318 kg)

Features:

Cargo System Lock & Ride, 6 Gal (23 L) Front Dry Storage, 2 Gal (8 L) Rear Storage
Hitch Towing Rating 1,225 lb (555.7 kg)
Hitch/Type Standard/1.25 in (3,2 cm) Receiver
Instrumentation All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Variants Off-Road
